Removing blockages from the Motorised floor tool

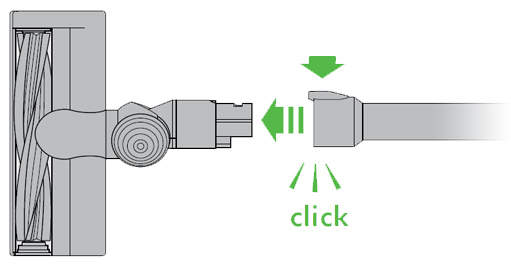

Step 1 - Removing Motorised floor tool from the wand
- Disconnect the Motorised floor tool from the wand by pressing the release button.

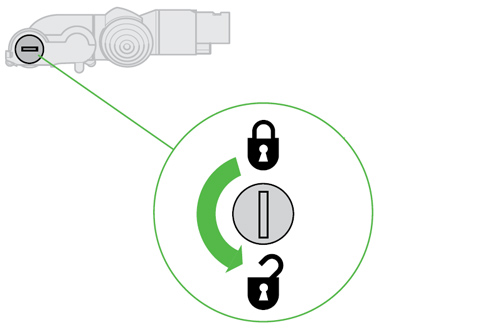

Step 2 - Unlocking the brushbar endcap
- Beware of sharp objects when checking for blockages.
- If you cannot clear an obstruction you may need to remove the brush bar.
- Turn the floor tool upside down so the underside of the floor tool is facing you. Use a coin to unlock the fastener marked with a padlock.

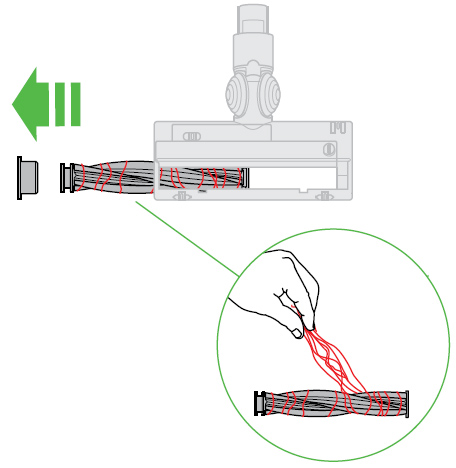

Step 3 - Removing the brushbar
- NB: This product has carbon fibre brushes. Take care if coming into contact with them, as they may cause minor skin irritation. Wash your hands after handling the brushes.
- Gently slide the large brushbar away from the floor tool.
- Remove the end cap from the brushbar.

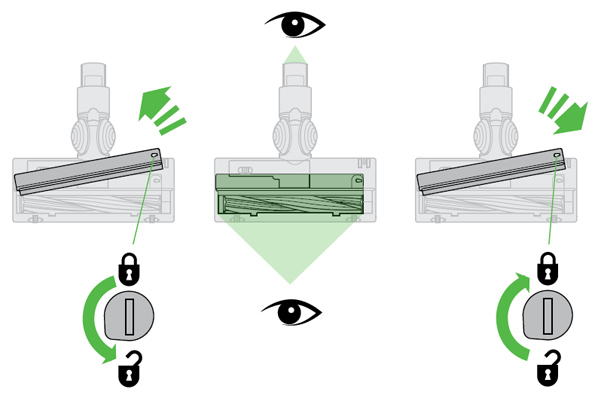

Step 4 - Removing the base plate
- To gain access to blockages in the floor tool, remove the base plate by using a coin to loosen the screw marked with a padlock.

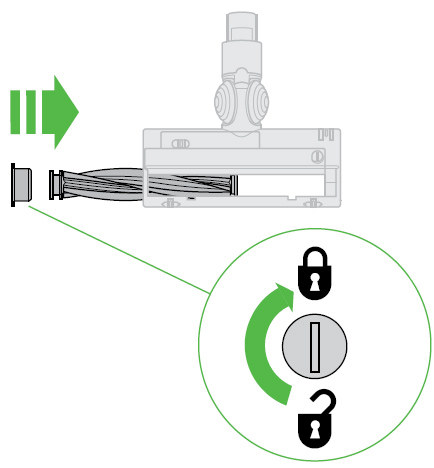

Step 5 - Refitting the brushbar
- Slide the large brushbar back onto the floor tool, around the motor. The end cap should be in the open position as shown.
- Once in place, rotate the end cap back into the closed position.
- Close the fastener by turning a quarter turn clockwise. Ensure that the fastener is fully turned and the base plate and the brushbar is secure.
- Ensure it is fixed firmly before operating the appliance.
- Re-fit the Motorised floor tool and test the machine.
