Replace filter indicator

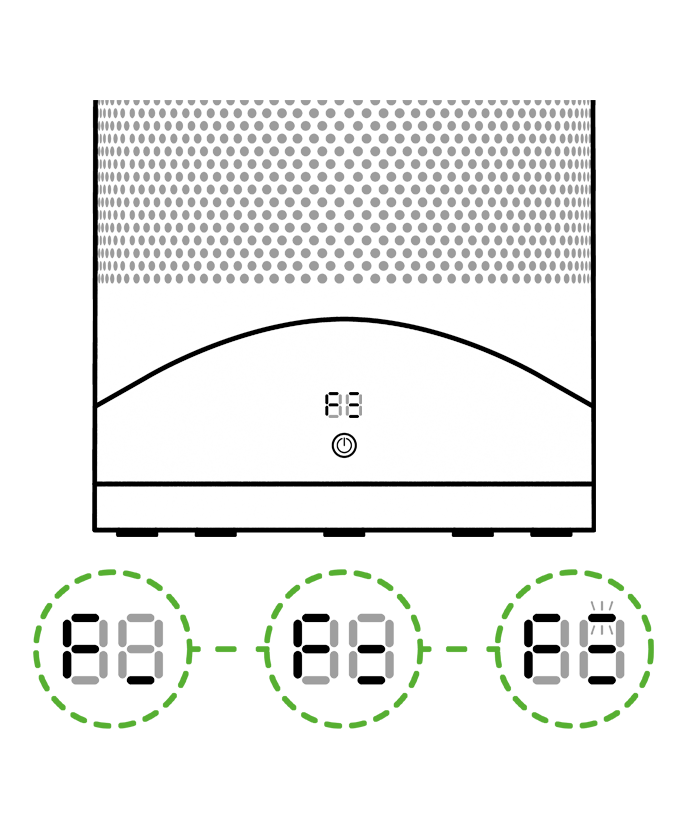

- When your non-washable filter unit needs replacing the machine will display the pattern shown.
- To replace the non-washable filter unit, complete the following steps.
- The indicator is only a guide and you may need to replace the filter unit more regularly.
Step 1
Ensure the purifier is unplugged.
Step 2

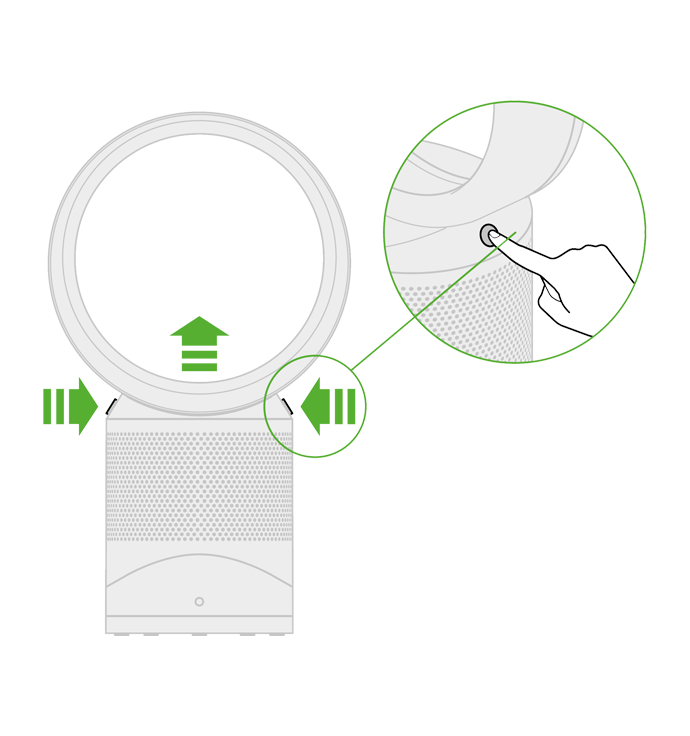

Press both buttons to lift off the loop amplifier.
Step 3

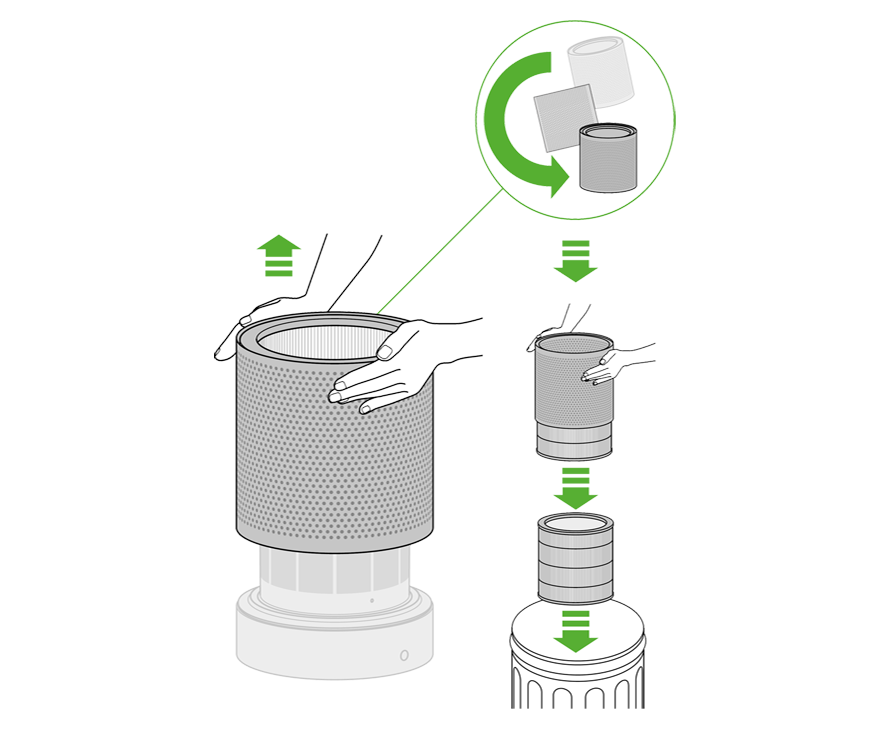

- Remove the old filter assembly.
- To dispose of your old filter unit place it in your household waste bin.
Step 4

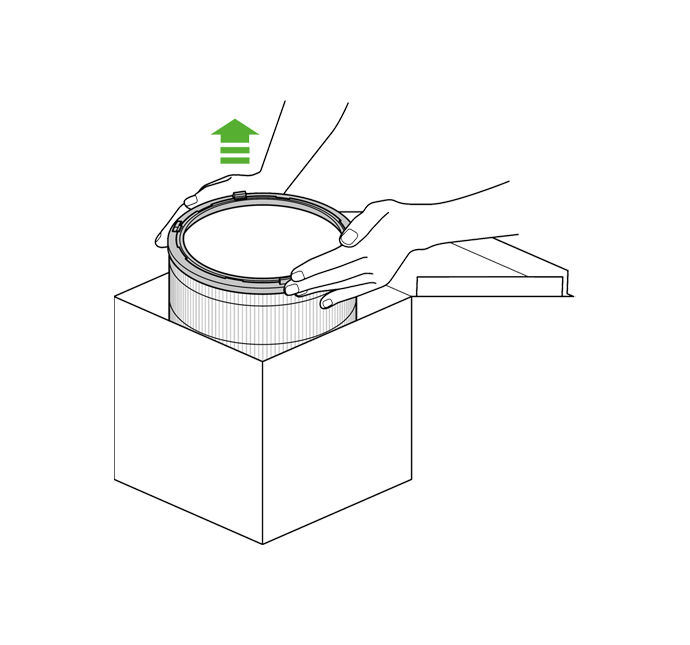

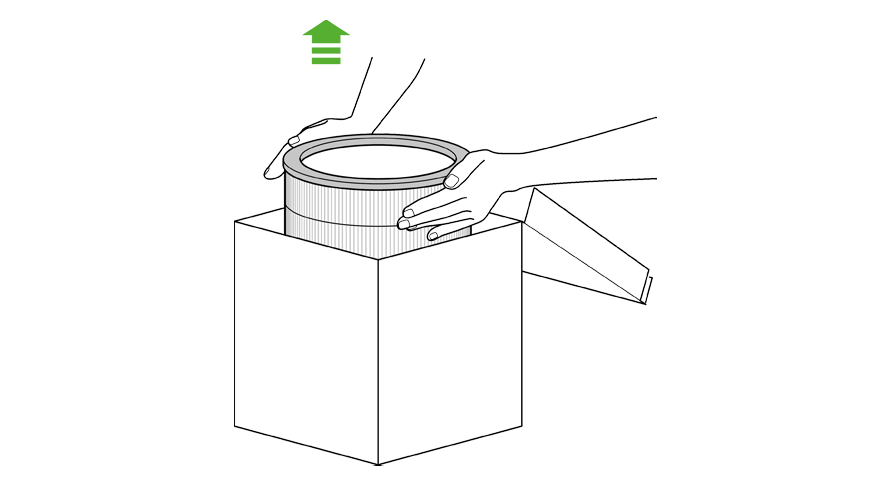

Remove the replacement filter from its packaging.
Step 5

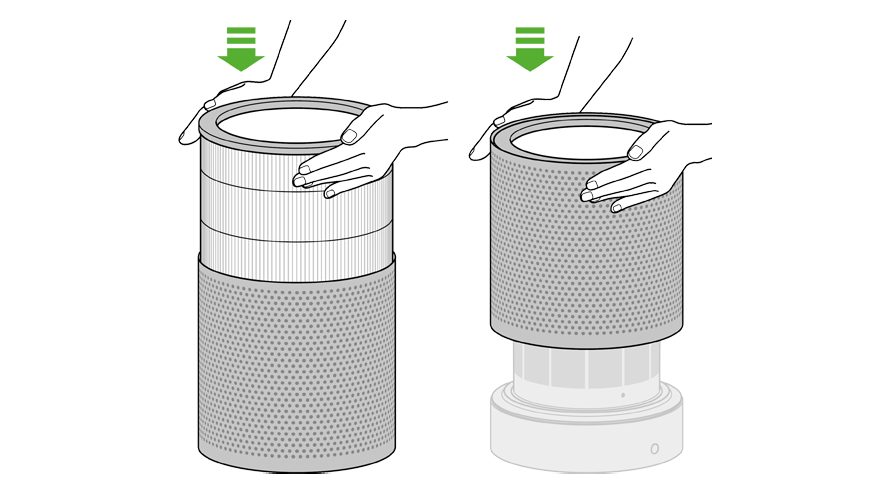

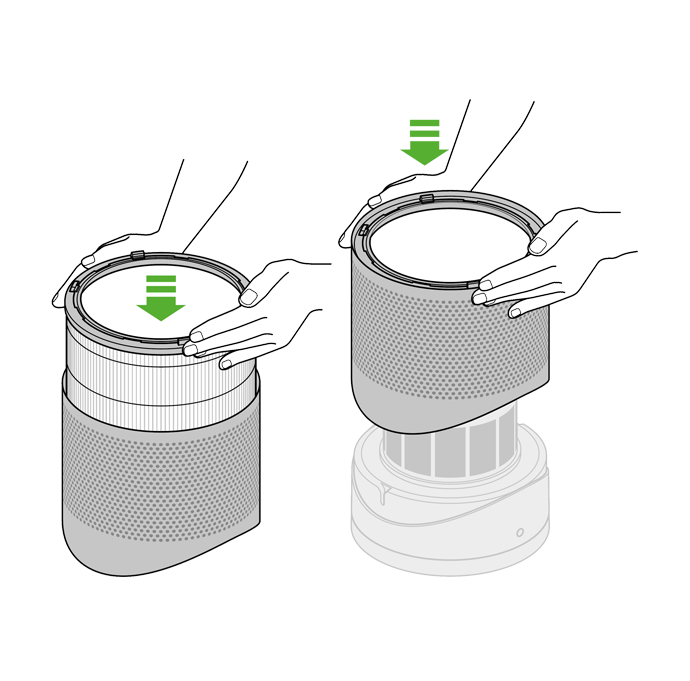

Lower the filter into the housing and then the complete unit onto the main body.
Step 6

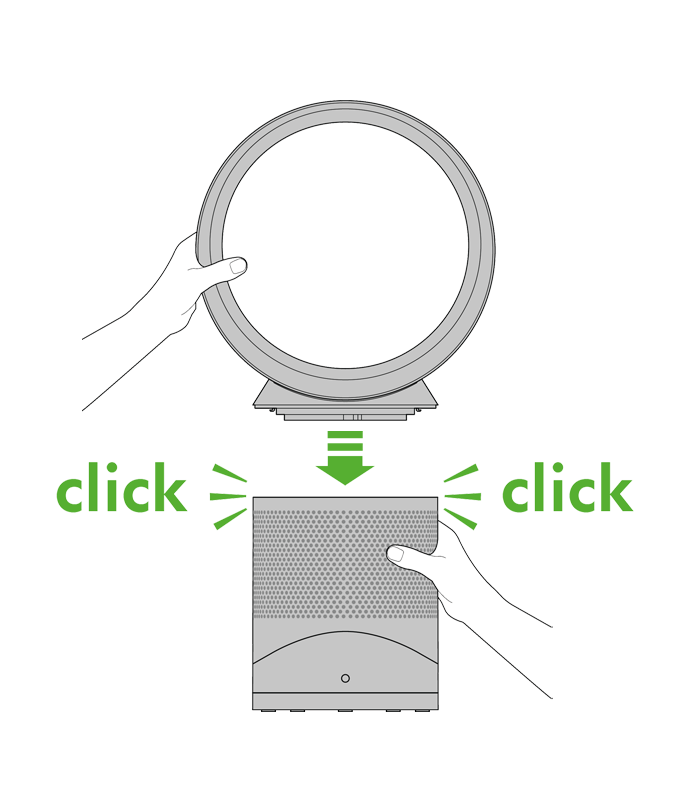

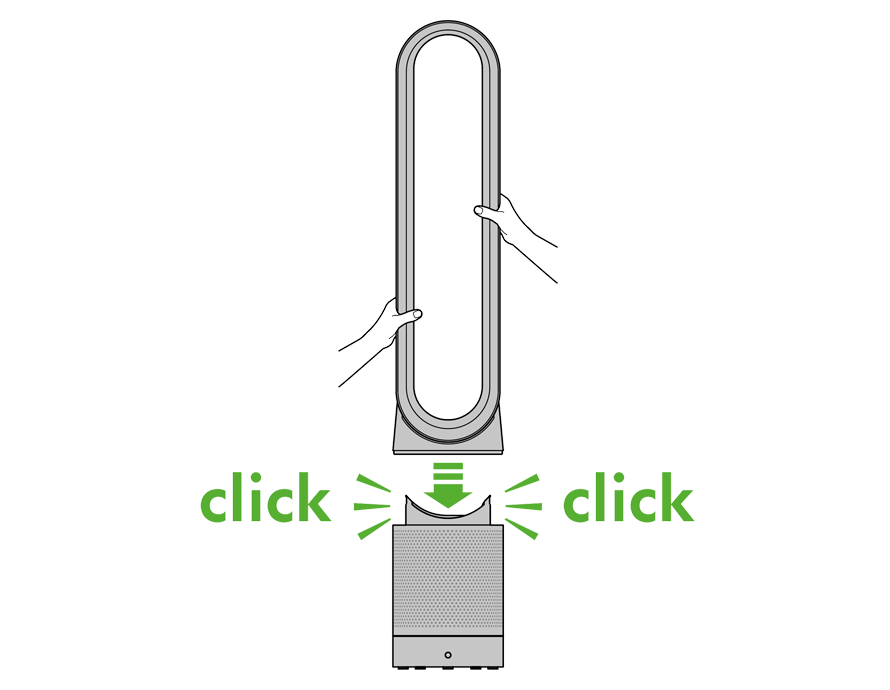

Lower the loop amplifier onto the base until it clicks and locks.
Step 7
Plug the purifier in and switch on at the wall.
Step 8

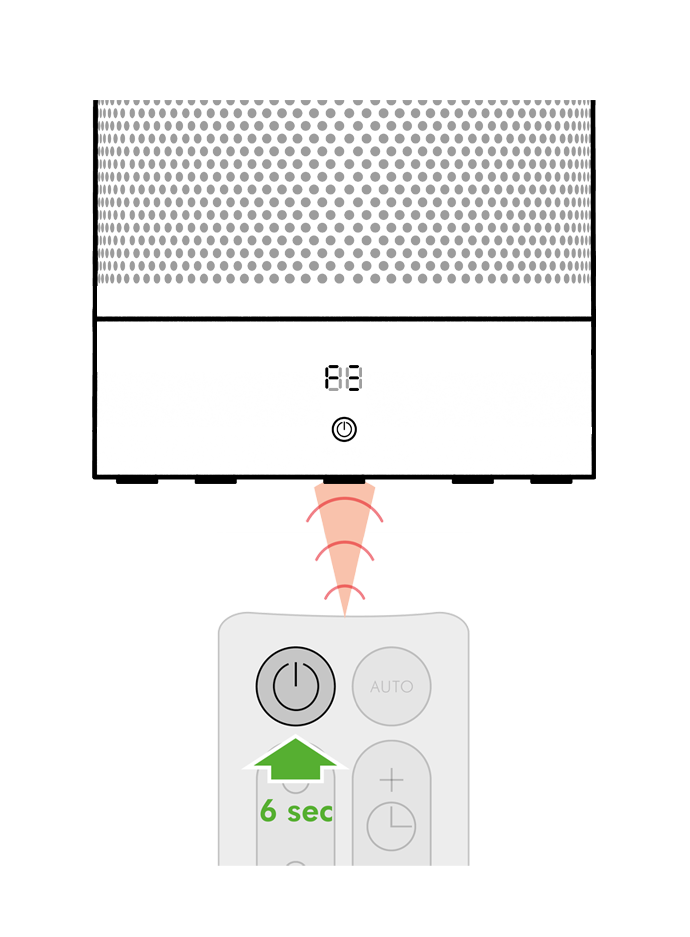

When you have re-assembled your purifier, press and hold the 'Standby ON/OFF' button on the remote for 6 seconds.
Step 9

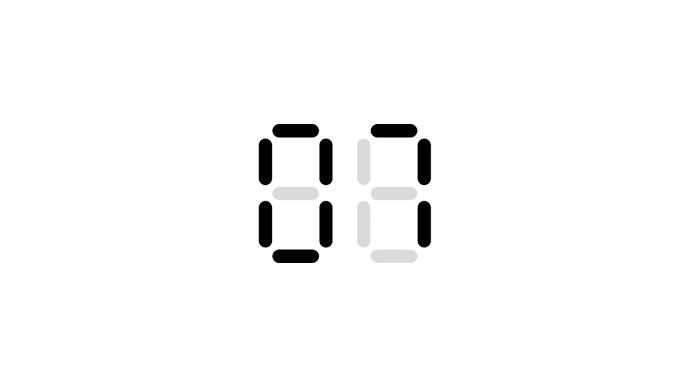

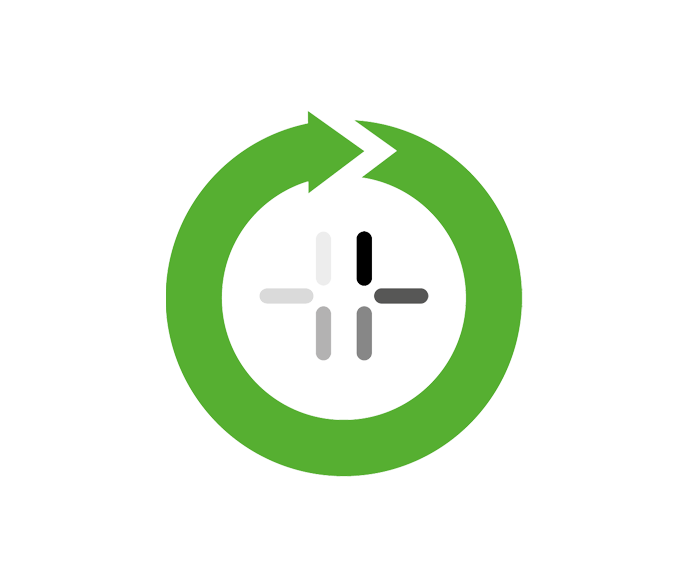

A clockwise-rotating loading pattern will be shown on the LED display.
Step 10
Once the loading pattern is complete, the purifier will return to its normal usage.
