How to use the remote control

Remote overview

  1. Standby ON/OFF.
  2. Airflow control.
  3. Auto purification mode.
  4. Focused mode.
  5. Sleep timer.
  6. Cooling mode.
  7. Thermostat control.
  8. Oscillation ON/OFF.
  9. Diffused mode.
  10. Night mode.

Remote control placement

Attach the remote control to the top of the Dyson purifier with the buttons facing down.

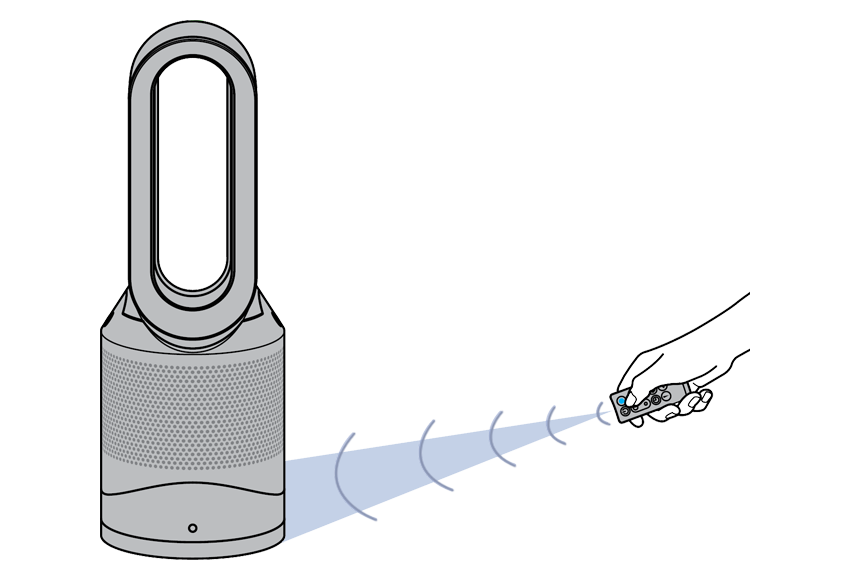

Operation

To operate, point the remote control toward the front of the base.

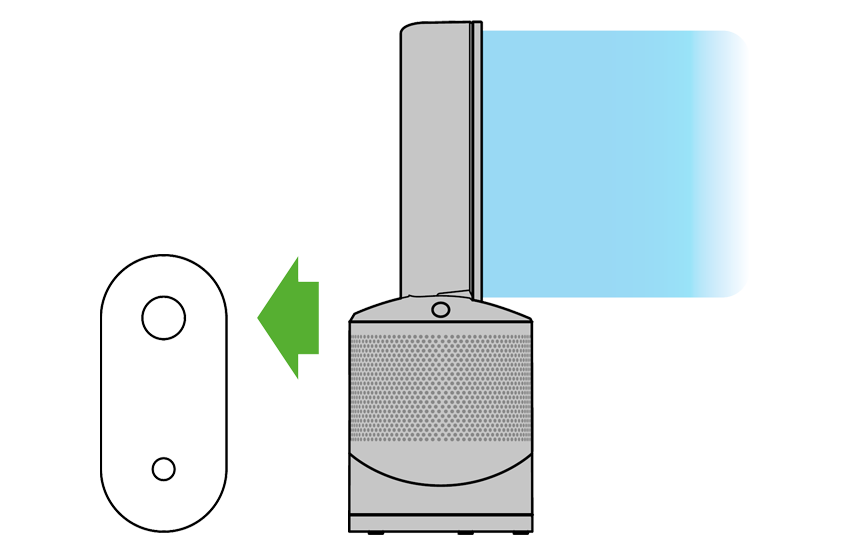

High airflow

  1. Select a high flow of air.
  2. Adjusting the airflow speed manually as shown above will override auto purification mode.

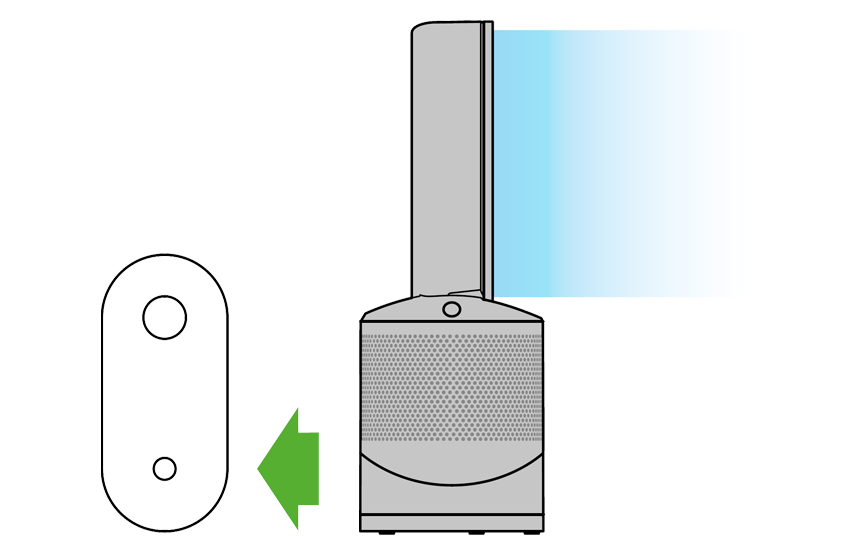

Low airflow

  1. Select a low flow of air.
  2. Adjusting the airflow speed manually as shown above will override auto purification mode.

Cooling mode

  1. Press the blue cooling mode button to enter cooling mode.
  2. The power button light will change from red to blue to indicate that you have entered cooling mode.
  3. To adjust the airflow speed use the airflow control button or use auto purification mode for automatic control.
  4. For more information about auto purification mode please see 'Purifying and heating modes'.

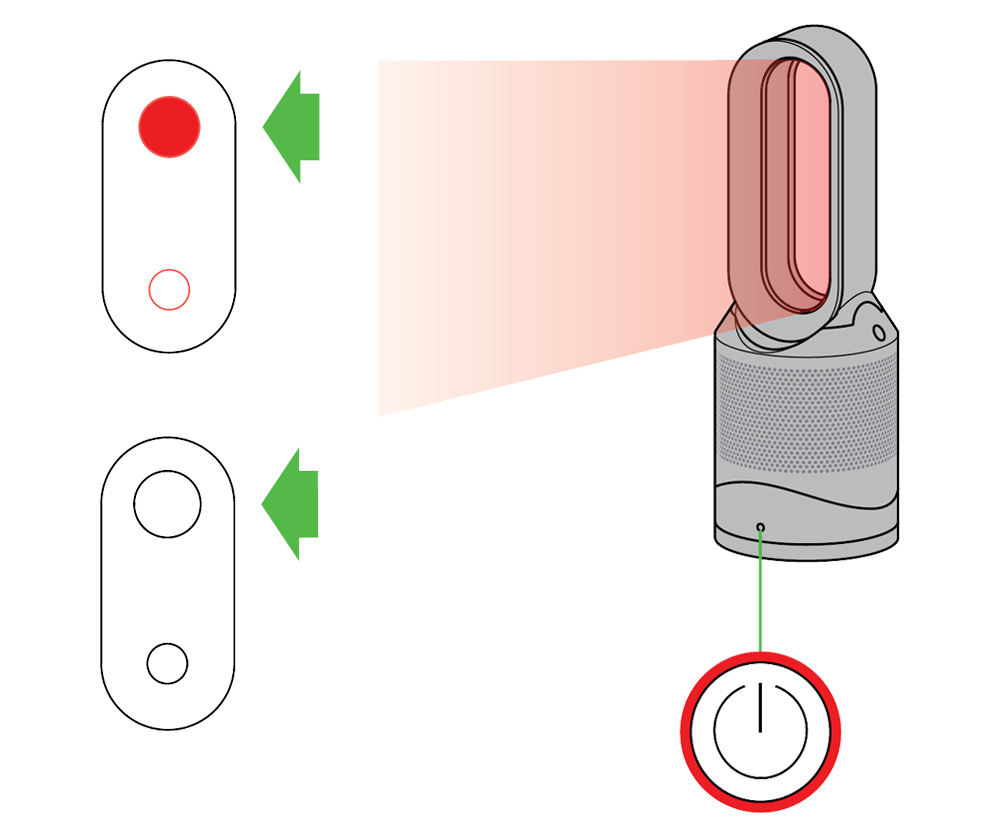

Heating mode

  1. Press the red thermostat control button up or down until the digital display shows the desired target room temperature.
  2. The power button light will change from blue to red to indicate that you have entered heating mode.
  3. To adjust the airflow speed use the airflow control button or use auto purification mode for automatic control.
  4. For more information about auto purification mode please see 'Purifying and heating modes'.

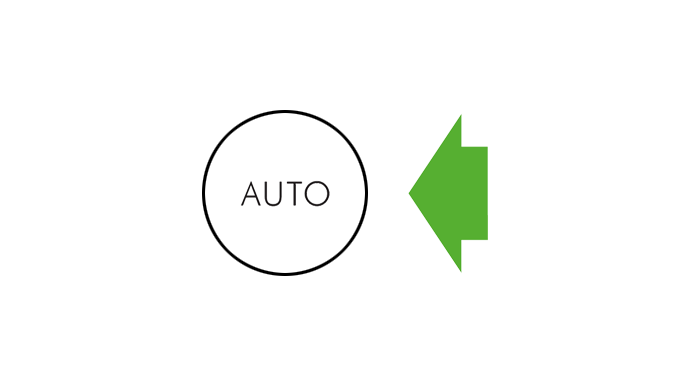

Auto purification mode

  1. Auto purification mode adjusts the airflow speed according to the air quality in the room.
  2. For more information about auto purification mode please see 'Purifying and heating modes'.

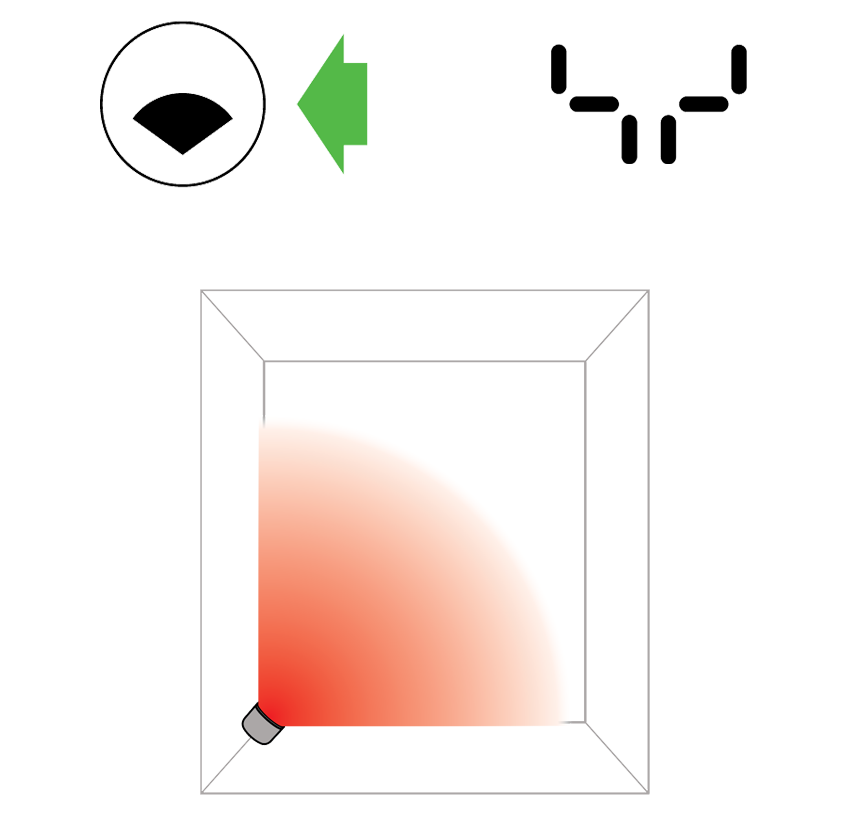

Diffused mode

  1. Press the wide angle button to change from a personal directed airflow to a whole room airflow.
  2. This can be activated in heating and cooling modes.

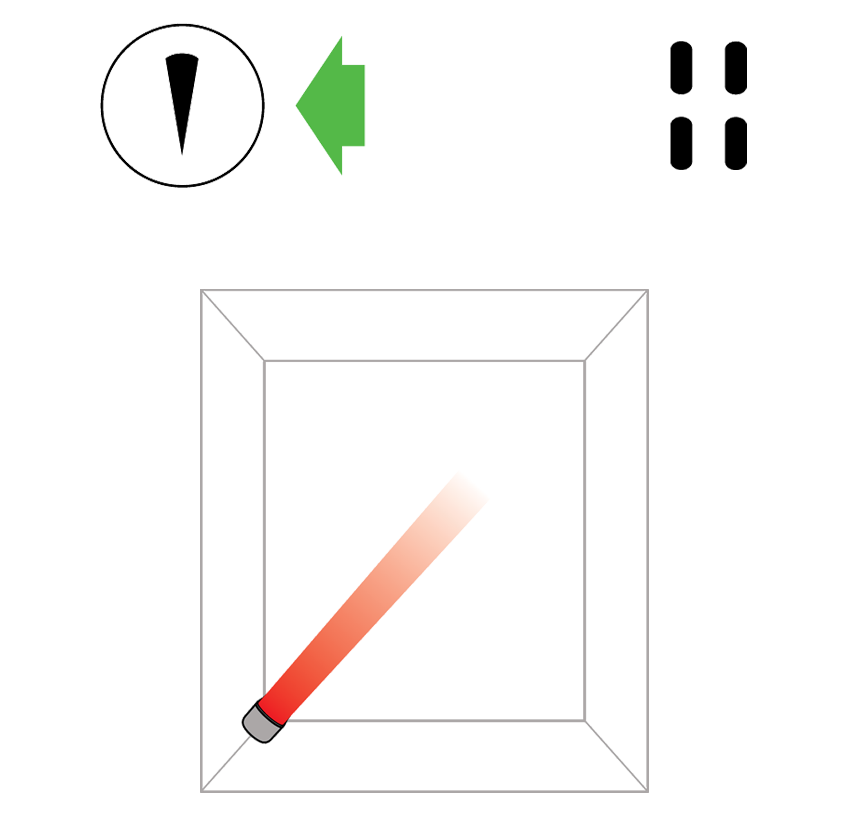

Focused mode

  1. Press the narrow angle button to change from a whole room airflow to a personal directed airflow.
  2. This can be activated in heating and cooling modes.

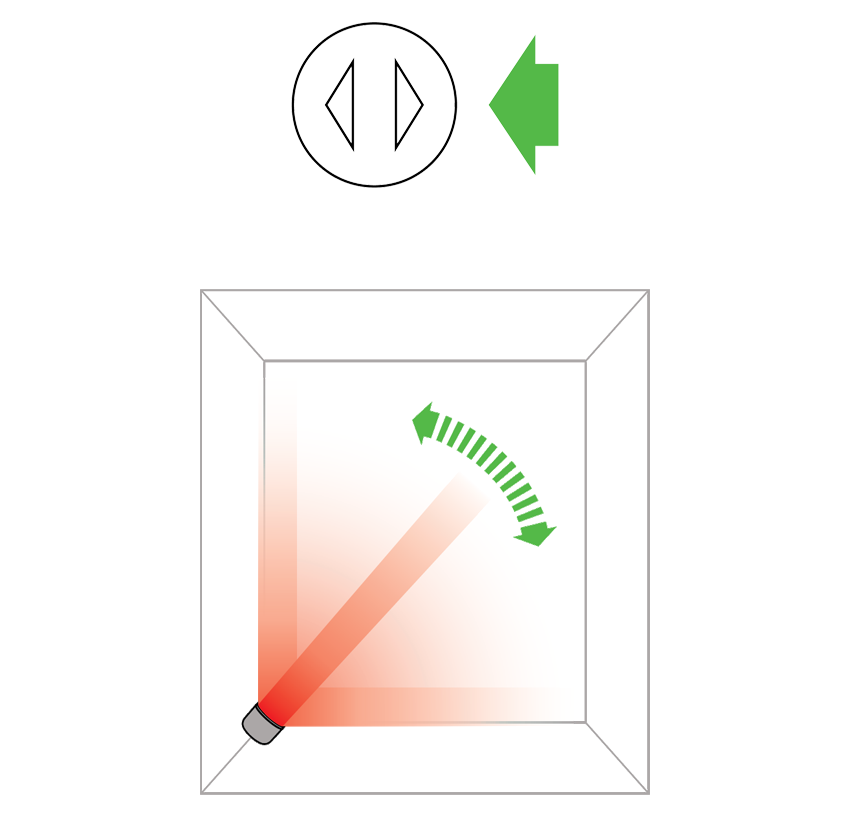

Oscillation control

  1. To start the purifier oscillating, press the oscillation control button.
  2. To stop the purifier oscillating, press it again.
  3. The purifier will not oscillate when the control buttons are pressed.

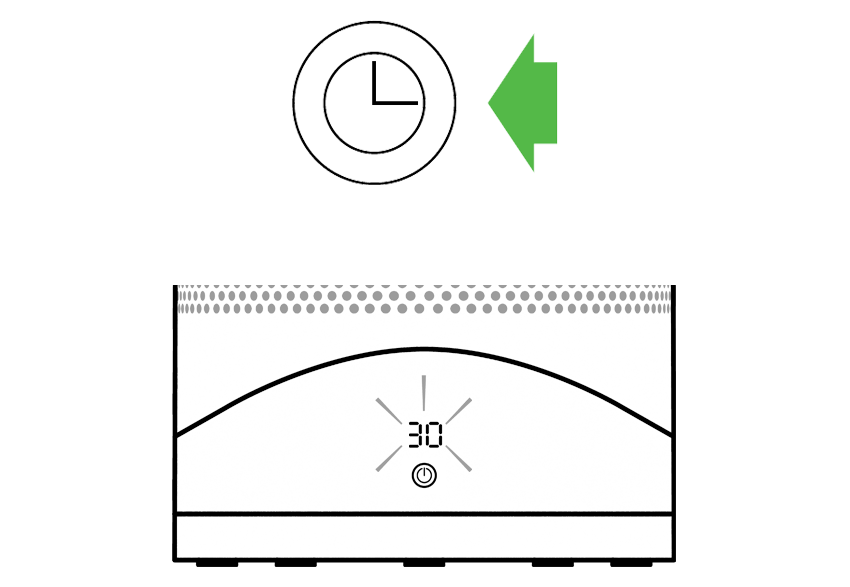

Sleep timer

  1. The sleep timer will turn your purifier off once the time set has passed.
  2. To set the sleep timer, press and hold until the desired time is displayed.
  3. When time reaches zero, the purifier will go into standby mode.
  4. To cancel, press and hold until two dashes appear on the display.

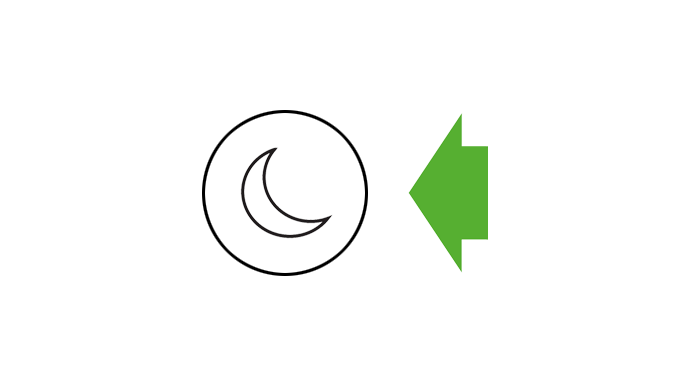

Night mode

  1. When night mode is enabled the display will dim and after 5 seconds will fade to off.
  2. If the purifier is in auto purification mode, the airflow is limited to level 4 for quiet operation.
