The wand and hose

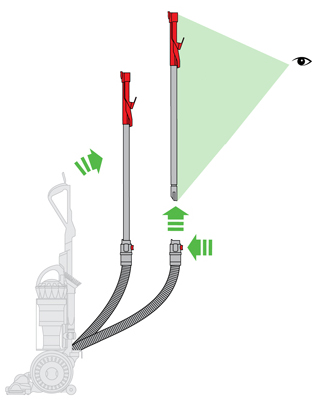

Removing the wand and hose

• Remove the wand from the machine as shown below.

• Check the wand for blockages and any damage.

Check the wand and hose

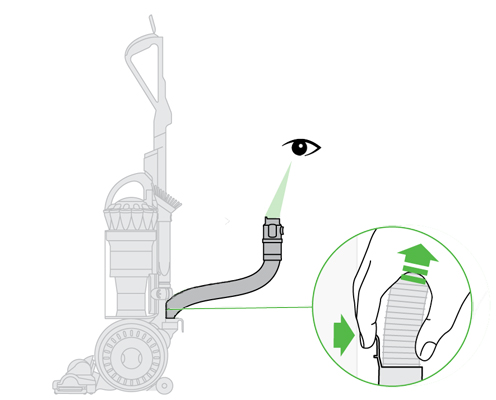

• Remove the hose from the machine as shown below.

• Check the hose for blockages and any damage.

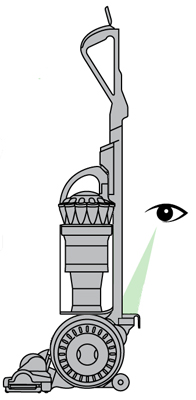

Check the hose inlet

• Check the hose inlet for blockages and any damage.

Note: The hose inlet is located below the hose on the rear of the machine.

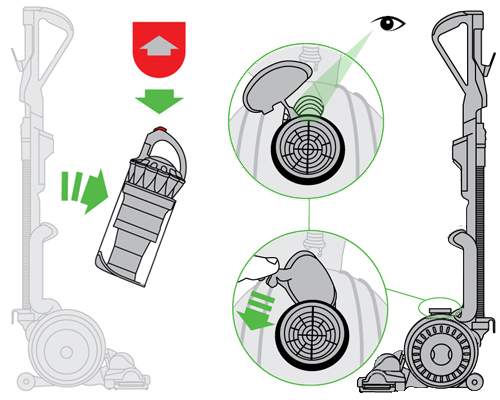

Checking the inspection port

• Remove the clear bin from your machine by pressing the cyclone release catch as shown.
• Lift up the clear inspection port cover and check for blockages in the channel and remove if necessary

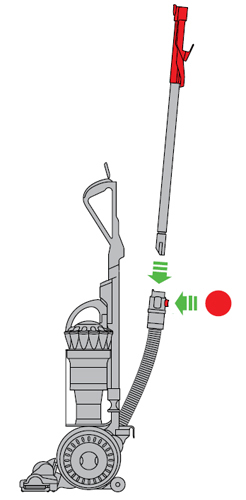

Reassemble the machine

• Reassemble the machine and test the suction from the wand and hose.

• Has this resolved the problem?
