The wand and the hose
Removing the wand and hose
- Remove the wand from the machine as shown below.
- Check the wand for blockages and any damage.
Check the wand and hose
- Remove the hose from the machine as shown below.
- Check the hose for blockages and any damage.
Check the hose inlet
- Check the hose inlet for blockages and any damage.
Note: The hose inlet is located below the hose on the rear of the machine.
Checking the internal hose

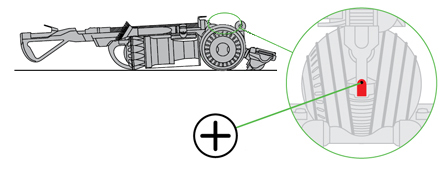

- Lay the machine on its front.
- Undo the fastening screw using a cross head screw driver.

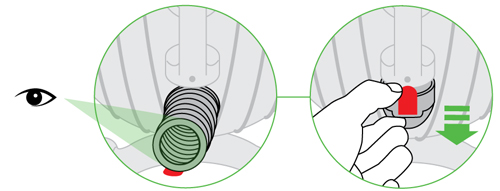

- Unclip the red internal hose collar.
- Check the internal hose for blockages and any damage.
Note: Refit the internal hose collar and screw before continuing with further checks.
Checking the inspection port
- Remove the clear bin from your machine by pressing the cyclone release catch as shown.
- Lift up the clear inspection port cover and check for blockages in the channel and remove if necessary
Reassemble the machine
- Reassemble the machine and test the suction from the wand and hose.
