How to clean the clear bin and cyclone

Step 1 - remove the cyclone and clear bin

• Remove the bin assembly by pressing the catch on top of the carry handle.

Step 2 - empty the clear bin

• Press the catch on top of the carry handle again to release dust directly into a wastebin.

Step 3 - separate the cyclone unit from the clear bin

• To separate the cyclone unit from the clear bin press the red button to open the clear bin base. This exposes a small silver button behind the red opening mechanism. Press the silver button and separate the cyclone unit from the clear bin.

• Clean the clear bin with cold water only.
• Ensure the clear bin is completely dry before replacing.
• Do not use detergents, polishes or air fresheners to clean the clear bin.
• Do not put the clear bin in a dishwasher.
• Do not immerse the whole cyclone unit in water or pour water into the cyclones.
• Clean the cyclone shroud with a dry cloth or dry brush to remove lint and dust.

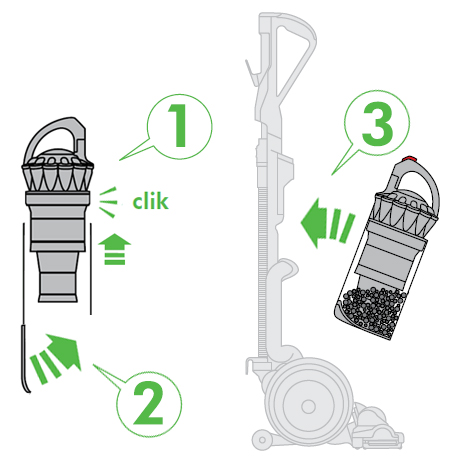

Step 4 - refit the bin and cyclone to the machine

1. Fit the cyclone shroud into the clear bin so that the silver button clicks and engages.
2. Close the clear bin base so it clicks into place.
3. Push the cyclone and clear bin unit into the main body of the machine; it will click into place.

Note: Ensure the cyclone and clear bin unit is secure.
