Check ducts

Turn off power and unplug the machine

Check upper duct

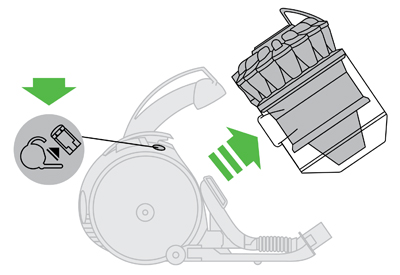

• Remove the bin and cyclone assembly.
• Check the upper duct for blockages and remove as necessary.

Check lower duct

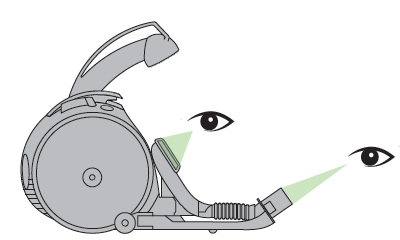

• Check the lower duct as shown below for blockages and remove as necessary.

The lower duct hose can be removed to allow easier access to this area.

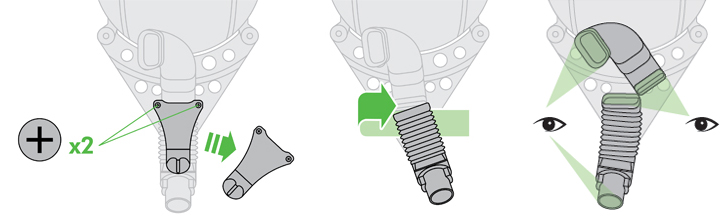

• Using a Phillips screwdriver, remove the two Phillips screws on the clear bin locator bracket and remove the bracket. (Do not remove any other screws.)
• Firmly twist the top of the flexible inspection hose away from the inlet next to the ball (do not remove the end next to the connection for the main hose).
• Remove blockages and reassemble in reverse order.

Check the lower duct seal.

Is it missing or damaged?
