How to remove a blockage from the wand and hose

Removing the wand and hose

  • Remove the wand from the machine as shown below.

diagram showing how to remove wand

  • Check the wand for blockages and any damage.



Check the wand and hose

  • Remove the hose from the machine as shown below.

diagram showing how to remove the hose

  • Check the hose for blockages and any damage.



Check the hose inlet

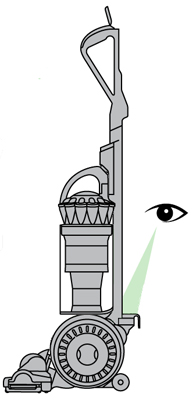

  • Check the hose inlet for blockages and any damage.

diagram showing how to check the hose inlet

Note: The hose inlet is located below the hose on the rear of the machine.



Checking the inspection port

  • Remove the clear bin from your machine by pressing the cyclone release catch as shown.
  • Lift up the clear inspection port cover and check for blockages in the channel and remove if necessary

diagram showing how to remove the cyclone and how to check the inspection port



Reassemble the machine

  • Reassemble the machine and test the suction from the wand and hose.

diagram showing how to refit the wand
